GFEVT1500-59E 高速熔斷器 100A-400A 1500Vdc

[附件: Download]

Dimensions (mm)

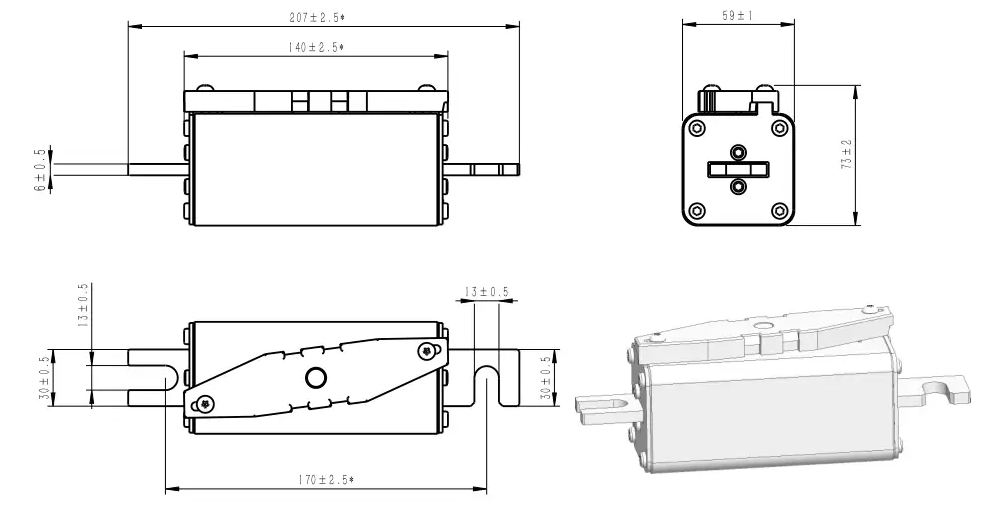

Bolted xxxB-59E

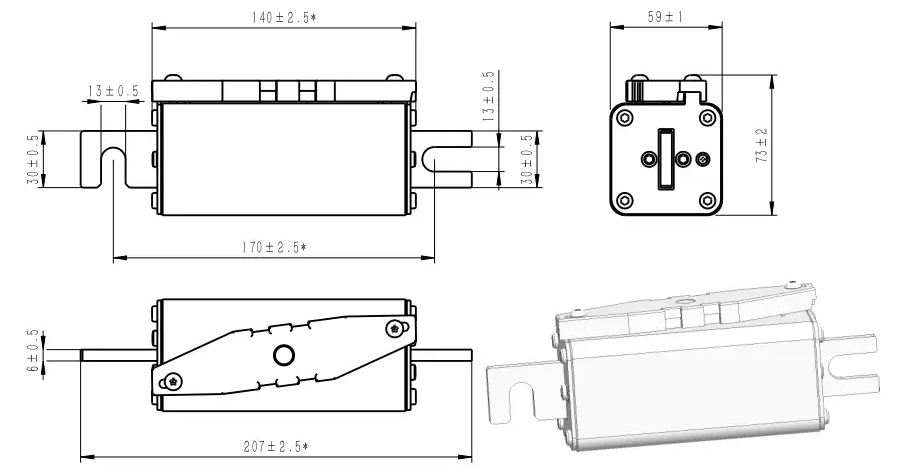

Din xxxU-59E

Description

Design For DC Applications
Excellent DC Performance
Superior Cycling Capability
Low Watt Losses

Standards / Approvals

Refer To UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Bolted	GFEVT1500-100B-59E	100A	3085	8568	43	55	●	●
	GFEVT1500-125B-59E	125A	4746	13182	47	60	●	●
	GFEVT1500-160B-59E	160A	7415	20597	53	68	●	●
	GFEVT1500-200B-59E	200A	11547	31208	69	86	●	●
	GFEVT1500-250B-59E	250A	18720	50594	86	108	●	●
	GFEVT1500-315B-59E	315A	31897	86207	102	128	●	●
	GFEVT1500-350B-59E	350A	42423	114556	110	137	●	●
	GFEVT1500-400B-59E	400A	61039	164970	122	153	●	●

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Din	GFEVT1500-100U-59E	100A	3085	8568	43	55	●	●
	GFEVT1500-125U-59E	125A	4746	13182	47	60	●	●
	GFEVT1500-160U-59E	160A	7415	20597	53	68	●	●
	GFEVT1500-200U-59E	200A	11547	31208	69	86	●	●
	GFEVT1500-250U-59E	250A	18720	50594	86	108	●	●
	GFEVT1500-315U-59E	315A	31897	86207	102	128	●	●
	GFEVT1500-350U-59E	350A	42423	114556	110	137	●	●
	GFEVT1500-400U-59E	400A	61039	164970	122	153	●	●

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Customize	GFEVT1500-100K-59E	100A	3085	8568	43	55	●	●
	GFEVT1500-125K-59E	125A	4746	13182	47	60	●	●
	GFEVT1500-160K-59E	160A	7415	20597	53	68	●	●
	GFEVT1500-200K-59E	200A	11547	31208	69	86	●	●
	GFEVT1500-250K-59E	250A	18720	50594	86	108	●	●
	GFEVT1500-315K-59E	315A	31897	86207	102	128	●	●
	GFEVT1500-350K-59E	350A	42423	114556	110	137	●	●
	GFEVT1500-400K-59E	400A	61039	164970	122	153	●	●
