歡迎來到- 東莞市貢福電子有限公司 的官方網站， 汽車熔斷器、保險絲、電流保險絲、保險絲座！
提供標準及特殊規格的電路保護元件本公司產品可廣泛應用于各電力設備領域的運用
全國銷售與服務熱線
0769 - 8239 1938
產品展示當前位置：首頁 > 產品展示
GFEVT1000-N-59E高速熔斷器100A-800A 1000Vdc



Dimensions (mm)

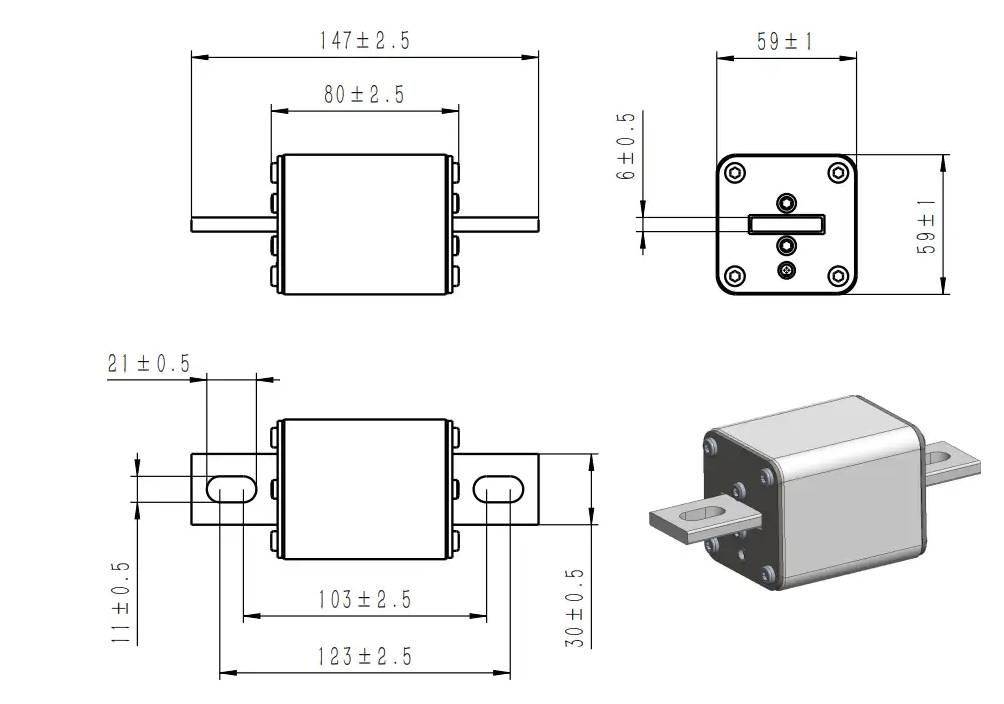

Bolted xxxBN-59E

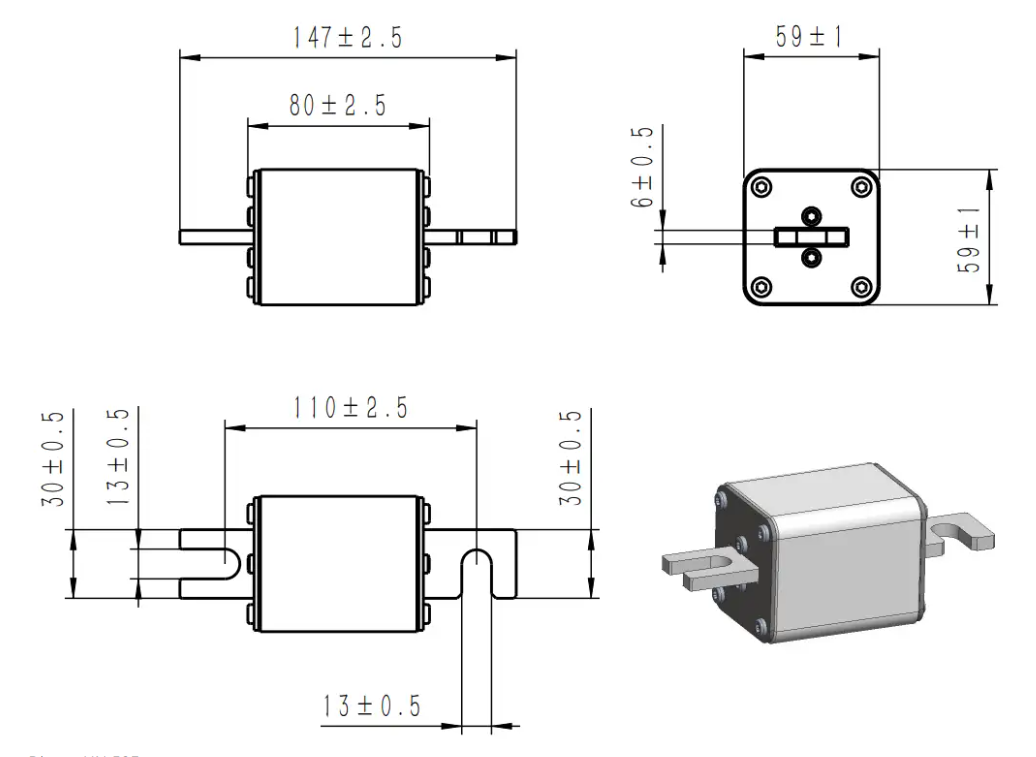

Din xxxUN-59E

Description



  • Design For DC Applications
  • Excellent DC Performance
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
 Bolted GFEVT1000-100BN-59E 100A 2# 1,320 8,680 75 ● ●
GFEVT1000-125BN-59E 125A 2# 1,880 12,400 80 ● ●
GFEVT1000-160BN-59E 160A 2# 2,690 17,710 85 ● ●
GFEVT1000-200BN-59E 200A 2# 3,840 25,300 90 ● ●
GFEVT1000-250BN-59E 250A 2# 5,490 36,150 98 ● ●
GFEVT1000-275BN-59E 275A 2# 7,900 52,170 105 ● ●
GFEVT1000-315BN-59E 315A 2# 10,900 72,850 113 ● ●
GFEVT1000-350BN-59E 350A 2# 13,900 91,650 120 ● ●
GFEVT1000-400BN-59E 400A 2# 19,450 131,600 128 ● ●
GFEVT1000-450BN-59E 450A 2# 30,950 192,700 135 ○ ○
GFEVT1000-500BN-59E 500A 2# 43,680 267,900 143 ○ ○
GFEVT1000-550BN-59E 550A 2# 56,420 347,800 150 ○ ○
GFEVT1000-630BN-59E 630A 2# 104,650 540,500 180 ○ ○
GFEVT1000-700BN-59E 700A 2# 145,930 739,350 188 ○ ○
GFEVT1000-800BN-59E 800A 2# 223,440 1,160,000 195 ○ ○
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% UL TUV
Din GFEVT1000-100UN-59E 100A 2# 1,320 8,680 75 ● ●
GFEVT1000-125UN-59E 125A 2# 1,880 12,400 80 ● ●
GFEVT1000-160UN -59E 160A 2# 2,690 17,710 85 ● ●
GFEVT1000-200UN -59E 200A 2# 3,840 25,300 90 ● ●
GFEVT1000-250UN-59E 250A 2# 5,490 36,150 98 ● ●
GFEVT1000-275UN-59E 275A 2# 7,900 52,170 105 ● ●
GFEVT1000-315UN-59E 315A 2# 10,900 72,850 113 ● ●
GFEVT1000-350UN-59E 350A 2# 13,900 91,650 120 ● ●
GFEVT1000-400UN-59E 400A 2# 19,450 131,600 128 ● ●
GFEVT1000-450UN-59E 450A 2# 30,950 192,700 135 ○ ○
GFEVT1000-500UN-59E 500A 2# 43,680 267,900 143 ○ ○
GFEVT1000-550UN-59E 550A 2# 56,420 347,800 150 ○ ○
GFEVT1000-630UN-59E 630A 2# 104,650 540,500 180 ○ ○
GFEVT1000-700UN-59E 700A 2# 145,930 739,350 188 ○ ○
GFEVT1000-800UN-59E 800A 2# 223,440 1,160,000 195 ○ ○
