GFEVF500高速熔斷器（35A-800A)500VDC


[附件: Download]

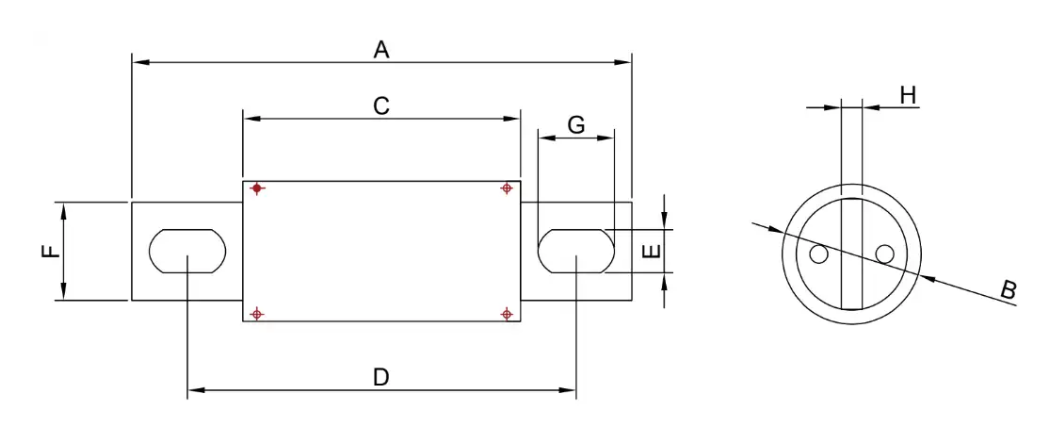

Dimensions (mm)



S. Current A±1.5 B±1 C±1 D±1.5 E±0.5 F±0.5 H±1 G±0.5
20R 35-60A 81 20 40 60.5 8.5 15 3 13
26R 70-150A 92 26 44 68.5 8.5 20 3 13
31R 125-250A 92 31 46 72.5 8.5 25 6 12.5
38R 225-450A 110 38 53 81.5 10.5 25 6 20
51R 450-800A 110 51 53 81.5 10.5 40 6 20

Description

  • Design For Dc Applications
  • Excellent Dc Performance
  • Low arc voltage and low energy let-through (I2t)
  • Superior cycling capability
  • Low Watt Losses

Standards / Approvals:

  • Refer To UL248.13 or IEC60269.4
  • Approvals:  CE
  • RoHS Compliant

Features & Benefits:

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Can be applied in parallel to realize greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current Catalog no. Average @50KA/500Vdc Power Loss W Approvals
Melting A2S Clearing A2S ROHS
20 mm diameter case
35 35A GFEVF500-35A-20R 49 509 8 ●
40 40A GFEVF500-40A-20R 111 1085 8 ●
50 50A GFEVF500-50A-20R 231 2624 10 ●
60 60A GFEVF500-60A-20R 305 3053 12 ●
26 mm diameter case
70 70A GFEVF500-70A-26R 392 2194 14 ●
80 80A GFEVF500-80A-26R 571 3413 16 ●
90 90A GFEVF500-90A-26R 673 3901 16 ●
100 100A GFEVF500-100A-26R 889 4876 20 ●
125 125A GFEVF500-125A-26R 1764 10051 25 ●
150 150A GFEVF500-150A-26R 2412 12075 28 ●
31 mm diameter case
125 125A GFEVF500-125A-31R 1498 6122 22 ●
150 150A GFEVF500-150A-31R 2059 8045 26 ●
175 175A GFEVF500-175A-31R 2714 10844 34 ●
200 200A GFEVF500-200A-31R 4050 14867 40 ●
225 225A GFEVF500-225A-31R 8650 33908 45 ●
250 250A GFEVF500-250A-31R 9094 51610 52 ●
38 mm diameter case
225 225A GFEVF500-225A-38R 5549 30873 42 ●
250 250A GFEVF500-250A-38R 7862 44372 48 ●
275 275A GFEVF500-275A-38R 9859 55533 54 ●
300 300A GFEVF500-300A-38R 12230 68624 58 ●
325 325A GFEVF500-325A-38R 17098 87916 60 ●
350 350A GFEVF500-350A-38R 18096 100456 65 ●
400 400A GFEVF500-400A-38R 23962 133253 70 ●
450 450A GFEVF500-450A-38R 33000 189670 78 ●
51 mm diameter case
450 450A GFEVF500-450A-51R 25688 134620 70 ●
500 500A GFEVF500-500A-51R 42515 205322 88 ●
550 550A GFEVF500-550A-51R 53450 249650 95 ●
600 600A GFEVF500-600A-51R 60133 283868 110 ●
630 630A GFEVF500-630A-51R 73815 319280 120 ●
700 700A GFEVF500-700A-51R 145880 515450 135 ●
800 800A GFEVF500-800A-51R 161840 565500 150 ●
