GFEVT500-R18高速熔斷器 (10A-100A)500Vac/dc

[附件: Download]

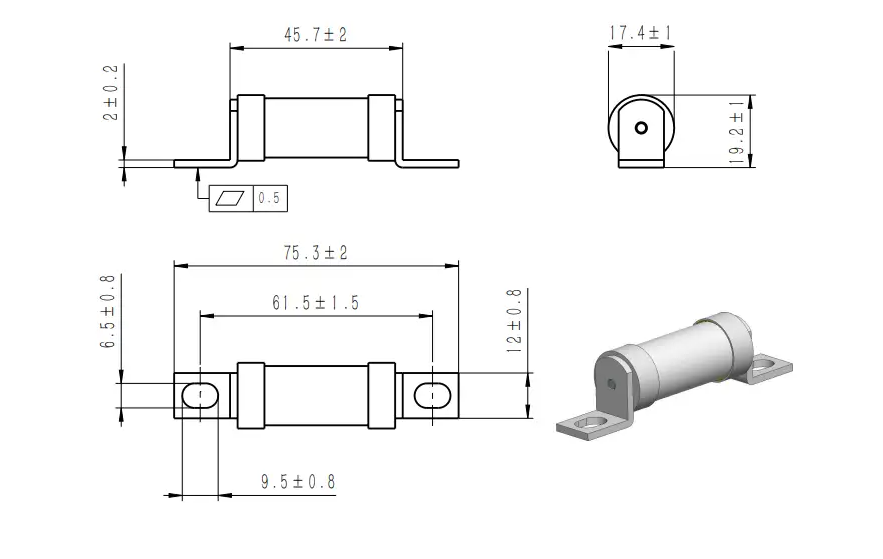

Dimensions (mm)



Description

  • Design for DC Applications
  • Excellent DC performance
  • Superior cycling capability
  • Low watt losses

Standards & Approvals

  • References:
    • UL 248.1 / UL 248.13
    • IEC 60269.1 / IEC 60269.4
    • GB 13539.1 / GB 13539.4
    • JASO D622
  • Manufacturing Compliance:
    • IATF16949 Quality System for automotive requirements
  • Certifications:
    • Reach declaration available upon request
    • CE
    • RoHS compliant

Features & Benefits

  • Higher voltage rating ensures overall system efficiency with smaller, more economical conductors while meeting high-voltage needs
  • Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent resistance to voltaic impingement and environmental temperature variations
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No. Fuse Amps Average @50KA/500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100%
GFEVT500-10A-18R 10A 7 13 2 3 ○ Pending
GFEVT500-16A-18R 16A 7 51 7 9 ○ Pending
GFEVT500-20A-18R 20A 32 231 6 7 ○ Pending
GFEVT500-25A-18R 25A 32 263 6 7 ○ Pending
GFEVT500-32A-18R 32A 34 316 7 9 ○ Pending
GFEVT500-35A-18R 35A 35 345 7 9 ○ Pending
GFEVT500-40A-18R 40A 108 460 7 9 ○ Pending
GFEVT500-45A-18R 45A 114 518 9 11 ○ Pending
GFEVT500-50A-18R 50A 126 690 9 11 ○ Pending
GFEVT500-63A-18R 63A 149 900 10 12 ○ Pending
GFEVT500-70A-18R 70A 231 1140 14 18 ○ Pending
GFEVT500-80A-18R 80A 275 1800 16 20 ○ Pending
GFEVT500-90A-18R 90A 418 2520 16 20 ○ Pending
GFEVT500-100A-18R 100A 517 3360 19 24 ○ Pending
  • DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃;
