GFEVT250-K-51熔斷器100A-800A 250VDC

[附件: Download]

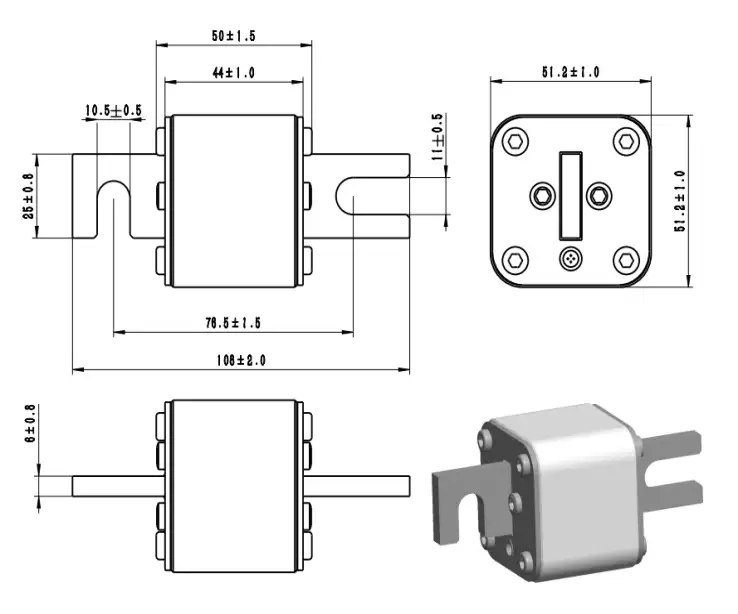

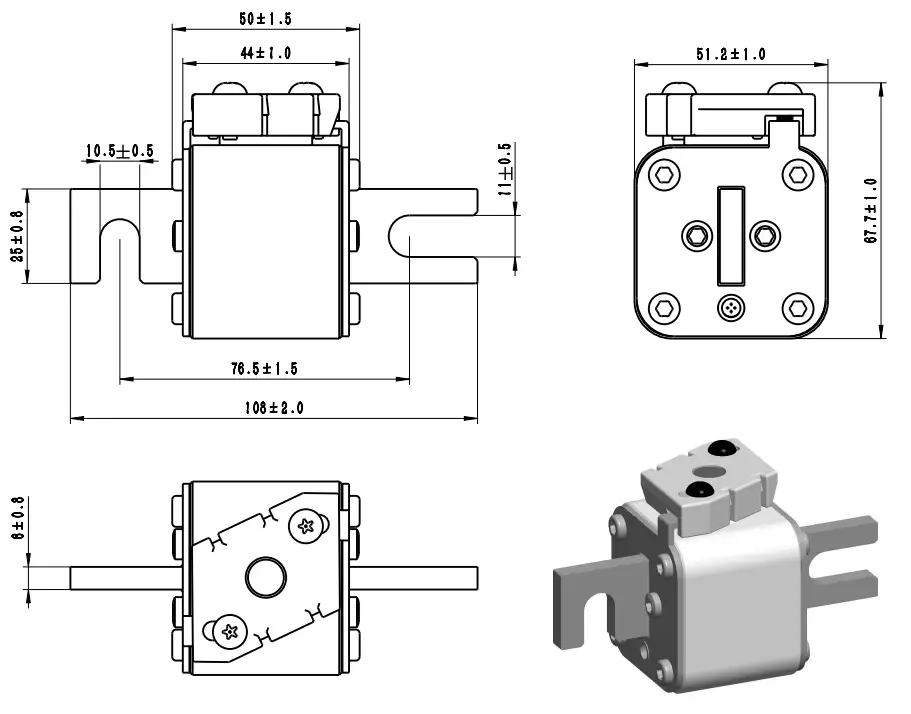

Dimensions (mm)


GFEVT250-xxxKN-51E


GFEVT250-xxxK-51E



Description

  • Designed for DC applications
  • Excellent DC performance
  • Superior cycling capability
  • Low watt losses

Standards & Approvals

  • Refer to UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • REACH declaration available upon request
  • RoHS compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent resistance to voltaic impingement and environmental temperature tolerance.
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No. Fuse Amps Size Average @50KA/250Vdc Power Loss (W)
A2s Melting A2t Clearing 100%
GFEVT250-100K-51E 100 1# 820 7,370 23
GFEVT250-125K-51E 125 1# 1,340 11,910 28
GFEVT250-160K-51E 160 1# 2,410 21,550 35
GFEVT250-200K-51E 200 1# 3,030 26,910 38
GFEVT250-250K-51E 250 1# 5,050 45,680 52
GFEVT250-275K-51E 275 1# 6,140 59,220 55
GFEVT250-315K-51E 315 1# 7,910 75,060 64
GFEVT250-350K-51E 350 1# 10,520 100,260 68
GFEVT250-400K-51E 400 1# 15,060 143,820 72
GFEVT250-450K-51E 450 1# 20,830 205,160 78
GFEVT250-500K-51E 500 1# 26,760 264,150 87
GFEVT250-550K-51E 550 1# 36,520 363,150 92
GFEVT250-630K-51E 630 1# 53,800 554,220 100
GFEVT250-700K-51E 700 1# 71,550 742,770 102
GFEVT250-800K-51E 800 1# 99,540 1,035,000 113
Optional base indicator, the standard product is the “Default” configuration.
Default: K–with fuse indication, e.g.: GFEVT250-630K–51E;
Optional: KN–without fuse indication, e.g.: GFEVT250-630KN-51E;
