歡迎來到- 東莞市貢福電子有限公司 的官方網站， 汽車熔斷器、保險絲、電流保險絲、保險絲座！
提供標準及特殊規格的電路保護元件本公司產品可廣泛應用于各電力設備領域的運用
全國銷售與服務熱線
0769 - 8239 1938
產品展示當前位置：首頁 > 產品展示
GFEVT750-R18高速熔斷器（20A-100A）750V

[附件: Download]

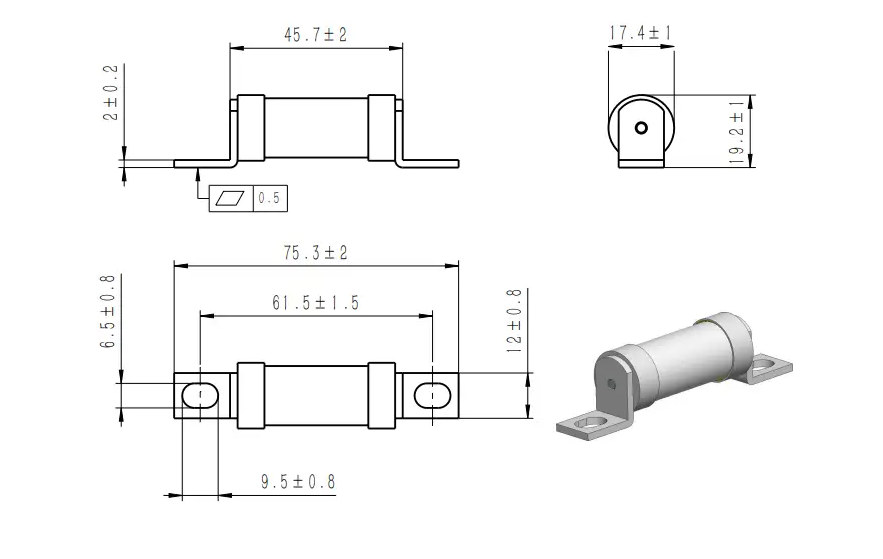

Dimensions (mm)




Description

  • Design for DC Applications
  • Excellent DC Performance
  • Superior cycling capability
  • Low Watt Losses

Standards & Approvals

  • References:
    • UL 248.1 / UL 248.13
    • IEC 60269.1 / IEC 60269.4
    • GB 13539.1 / GB 13539.4
    • JASO D622
  • Manufacturing Compliance:
    • IATF16949 Quality System for Compliance with Automotive Requirements
  • Certifications:
    • Reach Declaration Available Upon Request
    • CE
    • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No. Fuse Amps Average @50KA/750Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100%
GFEVT750-10A-18R 10A 7.56 15.60 0.75 1.50 ○ Pending
GFEVT750-16A-18R 16A 7.56 61.20 1.10 2.00 ○ Pending
GFEVT750-20A-18R 20A 34.56 277.20 1.25 2.50 ○ Pending
GFEVT750-25A-18R 25A 34.56 315.60 1.60 3.00 ○ Pending
GFEVT750-32A-18R 32A 36.72 379.20 2.50 4.50 ○ Pending
GFEVT750-35A-18R 35A 37.80 414.00 2.75 5.00 ○ Pending
GFEVT750-40A-18R 40A 116.64 552.00 3.20 6.00 ○ Pending
GFEVT750-45A-18R 45A 123.12 621.60 3.45 6.50 ○ Pending
GFEVT750-50A-18R 50A 136.08 828.00 4.00 7.50 ○ Pending
GFEVT750-63A-18R 63A 160.92 1080.00 5.30 10.00 ○ Pending
GFEVT750-70A-18R 70A 249.48 1368.00 6.20 12.00 ○ Pending
GFEVT750-80A-18R 80A 297.00 2160.00 7.80 15.00 ○ Pending
GFEVT750-90A-18R 90A 451.44 3024.00 9.50 18.00 ○ Pending
GFEVT750-100A-18R 100A 558.36 4032.00 10.30 20.00 ○ Pending
